2.2KW Pharmaceutical Powder Square Cone Mixing Machine 500L

Name: 22KW Pharmaceutical Powder Square Cone Mixing Machine 500L
Brand: Guojin
Price: 1 USD

China 2.2KW Pharmaceutical Powder Square Cone Mixing Machine 500L wholesale

Brand Name : Guojin

Model Number : SCM-500

Certification : ISO

Place of Origin : China

MOQ : 1 set

Price : Negotiable

Supply Ability : 10 sets per month

Delivery Time : 20-30days

Packaging Details : Standard export Carton

Item Name : Pharmaceutical Powder Square Cone Mixing Machine

Application : Medicine Processing, Chemicals Processing, Plastics Processing, Food Processing

Model type : SCM-500

Total volume : 500L

Max loading volume : 350L

Max loading weight : 250kg

Main shaft stirring speed : 15rpm

Motor power : 2.2kw

Feeding diameter : 380mm

Discharging diameter : 200mm

Weight : 700kg

Contact Now

Pharmaceutical Powder Square Cone Mixing Machine

SCM series square cone mixer is a novel material mixer widely used in pharmaceutical, chemical, metallurgy, food, light industry, feed and other industries. The machine can mix powder or granules very evenly to achieve the best results after mixing.

Product Application

SCM series hopper mixers are widely applied in pharmaceutical industry to mix different ingredients of dry powder and dry powder or dry powder and granule. The machine can mix different medicines of different batches according to technical requirements since its hoppers of variable specifications are optional for mixing. Therefore, such a design enables a single machine to achieve multiple purposes.

Product Feature

1. The square cone mixer has novel design, compact structure, beautiful appearance, uniformity of mixing of 99%, and volumetric loading coefficient of 0.8.
2. Low swing height, stable operation, reliable performance and convenient operation.
3. The inner and outer walls of the cone mixer barrel are mirror-polished, no dead angle, easy to discharge, easy to clean, no cross-contamination, in line with GMP requirements.

Technical Parameters

Model	500	1000	1500	2000	3000	4000	5000	6000	8000	10000
Total volume(L)	500	1000	1500	2000	3000	4000	5000	6000	8000	10000
Max loading volume(L)	350	700	1050	1400	2100	2800	3500	4200	5600	7000
Max loading weight(kg)	250	500	750	1000	1500	1960	2450	2950	3950	4900
Main shaft stirring speep(rpm)	15	12			9	9	8	8	7	7
Motor power(kw)	2.2	4	5.5	7.5	11	15	15	15	18.5	22
Feeding diameter(mm)	380	400					450	450	480	480
Discharging diameter(mm)	200	200	200	200	200	200	250	250	250	250
Overall dimension(mm)	2200x1550 x2260	2800x2000 x2850	2915x2300 x2950	3160x2500 x3200	3800x3200 x3850	3770x3190 x4030	4360x5310 x4415	4520x3570 x4850	4890x3790 x4880	5230x4050 x5230
Weight(kg)	700	1000	1500	2000	3000	4000	5000	6000	7000	7800

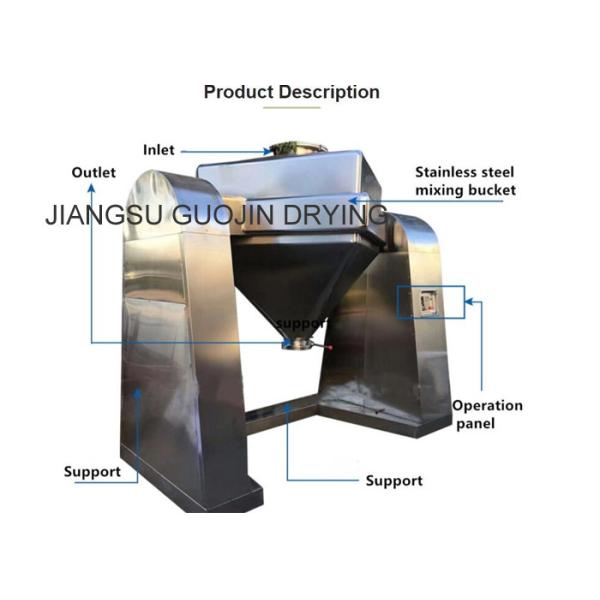

Product Show

2.2KW Pharmaceutical Powder Square Cone Mixing Machine 500L
